What are the application skills of asphalt mixing plants?

With the strengthening of the trend of environmental protection and energy conservation, the environmental protection of asphalt mixing plants has gradually become the mainstream form of mixing plant development. What kind of equipment can be called an environmentally friendly asphalt mixing plant? What are the basic conditions that must be met?
First of all, as an environmentally friendly asphalt mixing plant, it must meet the requirement of using less energy consumption during use. That is to say, under the conditions of the same quantity and quality, less energy is consumed during the operation process, including various resources such as water and electricity.
Secondly, environmentally friendly asphalt mixing plants not only require less energy consumption, but also must achieve higher production efficiency, while also reducing carbon emissions in the entire production process, so as to meet the proposed low-carbon production requirements

The first step in establishing an asphalt mixing station is to determine the host machine and feed batching system. Generally, the configuration is based on the project’s construction period, total amount of concrete, daily concrete consumption and other indicators. The basic principle is to meet the daily concrete consumption. Under normal circumstances, a project can only have one asphalt mixing station, or separate mixing stations can be set up according to zones, or a large mixing station can be set up together with an appropriate number of concrete transport trucks, all of which depend on the actual situation.

When using the asphalt mixing plant, you should regularly check the fuel pressure regulating valve or pressure reducing valve to determine whether the surface of the locking nut on the adjustable bolt is clean and removable; if the surface of the screw or nut is too dirty or rusty, it needs to be repaired or Replace the regulating valve.
Check the oil pump regularly to determine whether the sealing device is intact and whether the internal pressure is stable, and replace any damaged or leaking sealing devices. When using hot oil, check whether all oil pipes are well insulated. The filter installed between the oil tank and the oil pump must be cleaned regularly and checked for excessive wear to ensure that the fuel reaches the oil pump smoothly from the oil tank and to reduce the possibility of potential component failure.

In order to keep the asphalt mixing plant in a stable operating process, a series of adverse factors related to it must be excluded. What should be paid attention to in this process?
First of all, the selection of the delivery pump in the asphalt mixing plant must meet the requirements of asphalt pouring per unit time during construction, height, and horizontal distance requirements. At the same time, there must be a certain technical and production capacity reserve, and the balanced production capacity is preferably 1.2 to 1.5 times.
Secondly, the movement and hydraulic systems of the asphalt mixing plant must be normal, and there must be no abnormal sound and vibration to avoid large aggregates and lumps inside the equipment, otherwise it is easy to get stuck at the feed inlet of the mixing plant or be blocked due to arching. Another point is that when the asphalt mixing plant is in the same site, it is not suitable to use too many pumps and pumps from multiple manufacturers to avoid affecting its normal operation.

Asphalt mixing stations and equipment must implement secondary leakage protection measures. They can only be used after being plugged in and operated through the circuit breaker before use. During the trial operation, it is necessary to verify that the rotational speed of the mixing drum will be inappropriate.

The drive unit is one of the important components of the asphalt mixing plant, so whether it can be reliably operated must be highly valued to avoid adverse effects on the entire asphalt mixing plant. To ensure that the drive unit in the asphalt mixing plant is indeed complete and reliable, the following maintenance measures are essential.
The first thing to pay attention to is the universal rotating part of the drive unit of the asphalt mixing plant. This part has always been a fault-prone part. In order to reduce the occurrence of faults, grease should be added on time, and the wear should be checked frequently, and repaired and replaced in time. Users should also prepare the universal shaft assembly to avoid affecting the working process of the entire asphalt mixer.

The asphalt mixing plant is a complete set of equipment for mass production of asphalt concrete. The whole machine of the equipment consists of multiple systems, such as batching system, drying system, combustion system, powder supply system and dust prevention system. Each system is an important part of the asphalt mixing plant.
The working condition of the combustion system of the asphalt mixing plant has a great impact on the whole system, which is related to the economic efficiency of the whole system, temperature control accuracy and flue gas emission indicators. This article will briefly introduce how to judge the working condition of the combustion system of the asphalt mixing plant.
Generally speaking, due to the complexity of the detection equipment and methods, there are no conditions to achieve in the working process of most asphalt mixing plants. Therefore, it is more convenient to judge the working condition by a series of relatively intuitive factors such as the color, brightness and shape of the flame. This method is very simple and effective.

The renovation of the combustion-supporting system of the asphalt mixing plant and the use of DC frequency conversion CNC machining technology are all renovations of the original system. In addition to the above renovation plans, with the existing equipment and personnel, what other measures can be taken in the application to reduce the operating costs of concrete mixing plants?
At present, China has no mandatory national industry standards for heavy residual oil, and the quality of fuel oil varies greatly. Even from the same dealer, the quality difference between batches is very large, and it contains more residues. Therefore, bridge inspection equipment should be installed on the construction site, and professional personnel should inspect various performance parameters of gasoline and diesel to strictly control quality.
When the burner is working, if the flame of the combustion aid is red and the smoke from the ash removal chimney is black, this is the manifestation of poor atomization of gasoline and diesel and insufficient combustion aid. At this time, the following measures should be taken to deal with it: properly adjust the distance between the nozzle and the vortex plate, generally push it inward to a suitable distance, the purpose is to prevent the atomized oil cone sprayed from the nozzle from spraying into the vortex plate; effectively adjust the ratio of gasoline and diesel to gas, so that the gasoline and diesel increase the mass conversion law slowly, or the gas increase the mass conversion law quickly; promptly remove the carbon deposits and coke around the nozzle to prevent the flame from deflecting; heavy residual oil contains more residues, which can easily cause serious damage to the high-pressure oil pump and increase the working pressure, affecting the actual effect of atomization and the shape of the flame, so the high-pressure oil pump must be repaired or replaced in time; install metal filter devices in front of the first and second high-pressure oil pumps, and clean them frequently to prevent the residues in the gasoline and diesel from blocking the nozzle.
The operators should be trained in professional skills on a regular basis to strengthen their job responsibilities and moral education, so that they can establish their respective job responsibilities, understand the importance of their positions, understand the content of their work, and improve their professional level. Skilled operators can properly control the temperature of the asphalt mixing plant mixture to avoid gasoline and diesel waste.
In order to improve the combustion-supporting effect and effectively reduce the operating costs of asphalt mixing stations, Sinoroader Group kindly reminds that the following issues should be noted when using the burner in the asphalt mixing station: To improve the maintenance of the burner, the burner nozzle should be cleaned of charred materials and carbon deposits on the ignition electrode regularly. The nozzle can be disassembled according to the atomization status; the air-oil ratio of the burner is generally not adjusted, and the fuel pump pressure can be adjusted according to the smoke status and the temperature of the asphalt mixture; the sulfur dioxide generated by the combustion of light fuel oil has a strong corrosion to the bag, so the bag should be maintained regularly and the air pressure changes in the bag should be paid close attention to; water deashing will produce more foam, causing the sand settling tank to flow out, so the sand settling tank should be cleaned in time, and a watering design should be carried out to settle the foam; when the steam pressure decreases or the gear oil pump noise increases, the gear oil pump must be replaced.
When the burner is started, the fuel oil circulation system should be completed through the valve, and then the burner control box should be opened to start the burner. If the electronic ignition of the fuel oil fails, you can change the inlet tee and use the diesel engine for ignition. After the ignition is successful for 2 minutes, you can convert it into fuel oil. In this way, even the light fuel oil of lower quality can ensure combustion.

1: The site should be located on higher ground and away from residential areas and densely populated areas.
2: The venue should consider the transportation distance and choose a location with convenient transportation.
3: Determine the website construction plan according to the terrain

Asphalt mixing stations are constructed according to a certain process, which can not only ensure the construction quality, but also ensure that the asphalt mixing station is not damaged. Although construction details are critical, the key skills of asphalt mixing station construction must be mastered.
Before the construction of the asphalt mixing plant, the top surface of the asphalt mixing station construction range should be removed, and the site elevation should be kept dry and flat to meet the design requirements. If the surface is too soft, the foundation should be reinforced to prevent the construction machinery from losing stability and ensure that the pile frame is vertical.
Then the on-site construction machinery should be inspected to ensure that the machinery is intact and assembled and tested under the premise of meeting the requirements. To ensure the verticality of the asphalt mixing plant, the deviation of the gantry guide and the mixing shaft from the verticality of the ground shall not exceed 1.0%. Asphalt mixer manufacturer.

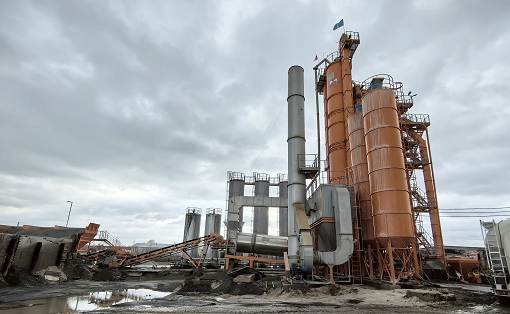

Asphalt mixing plant, also known as asphalt concrete mixing plant, is a complete set of equipment for batch production of asphalt concrete. Its efficient and stable operation is of great significance to ensure the quality of the project. It is mainly used in the construction of highways, grade roads, municipal roads, airports, ports and other projects. According to the mixing method, asphalt mixing plant can be divided into forced intermittent type and continuous production type; according to the transportation method, it can be divided into fixed type, semi-fixed type and mobile type.
The working principle of asphalt mixing plant mainly includes steps such as aggregate processing, asphalt processing and mixture mixing. Specifically, aggregates (such as gravel, crushed stone, etc.) are sent to aggregate bins through conveyors or bucket elevators, and then measured by aggregate metering devices, and a certain amount of aggregates are sent to sub-bins. Asphalt is stored in asphalt bins or oil storage tanks, and is measured by asphalt metering devices, and a certain amount of asphalt is sent to asphalt sub-bins. Finally, according to the ratio requirements, different aggregates are taken out from their respective sub-bins and sent to the mixture mixer through conveyors or bucket elevators for mixing.

For road construction machinery, the following is mainly about the asphalt mixer in road construction machinery equipment. Because it is the key product of Wuxi road construction machinery manufacturers, it is necessary to carry out comprehensive training and mastery, so as to ensure meticulousness and practicality, and not ignore any knowledge points.
1. In road construction machinery, is there any difference between asphalt mixing equipment and asphalt concrete mixing equipment?
The answer given by Sinoroader Group manufacturer to this question is no, that is, there is no difference between asphalt mixing equipment and asphalt concrete mixing equipment. They refer to the same type of equipment, but they are different in name. It can be said that they are two names for the same type of equipment, and there is no difference in essence.
2. During the operation of the asphalt mixer, there is a sound in the mixing pot. What’s the matter?
In the view of Sinoroader Group, there are two answers to this question. One is that the mixer arm on the asphalt mixer is not good or damaged. The second is that the wear-resistant lining in the mixer is damaged, which leads to this problem.
3. What are the dust removal devices in the asphalt mixing equipment?
In the asphalt mixing equipment, for its dust removal device, Sinoroader Group believes that the key is to use the dry ash removal method, because it can facilitate the collection of raw materials. In terms of its dust removal equipment type, there are filter dust removal equipment, centrifugal fan dust removal equipment and force dust removal equipment, etc., which can all be used well.
For the asphalt mixer and asphalt mixing equipment in road construction machinery, I believe that through the practical discussion of the above relevant content, everyone can master it well and master it, so that in practice, they can have new gains and benefit a lot from it.

At present, the assembly and installation technology of large-scale asphalt concrete mixing equipment in high-grade highway construction is gradually improving. In order to improve work efficiency, it is necessary to analyze the pretreatment agent for the selection and matching of large-scale mixing equipment and auxiliary equipment, and clarify the installation and commissioning of asphalt stations. With the continuous change of highway construction methods, it is necessary to adopt production equipment according to the requirements of the development of the times. Intermittent asphalt mixing equipment is a widely used road construction equipment with the characteristics of simple operation and high work efficiency. Relevant staff are required to master the installation, construction and management methods of mixing equipment.

Colored asphalt pavement is a kind of special pavement material that mixes colored particles into asphalt and then lays on the pavement

The plug valve is a rotary valve in the shape of a closure or plunger. After rotating 90 degrees, the channel opening on the valve plug is the same as or separated from the channel opening on the valve body to complete opening or closing. It is widely used in oilfield excavation, transportation and refining equipment, and such valves are also needed in asphalt mixing plants.
The valve plug of the plug valve in the asphalt mixing plant can be cylindrical or conical. In the cylindrical valve plug, the channel is generally rectangular; in the conical valve plug, the channel is trapezoidal. These shapes make the structure of the plug valve light and very suitable for blocking and connecting media and diversion.

After use, asphalt mixing equipment needs to be disassembled, cleaned, and maintained before it can be saved for next use. Not only is the disassembly process of the equipment important, but the previous preparation work also has a greater impact, so it cannot be neglected. Please pay attention to the detailed introduction below for specific content.

We know that the first priority in production is to ensure safety. In the process of operating equipment, staff must always pay attention to using the correct operating methods. Regarding the asphalt mixing plant, it is used to produce asphalt mixtures, modified asphalt mixtures, and colored asphalt mixtures to meet the needs of highways, graded highways, municipal roads, airports, etc.

The drive unit is one of the important components of the asphalt mixing plant, so whether it can be reliably operated must be highly valued to avoid adverse effects on the entire asphalt mixing plant. In order to ensure that the drive unit in the asphalt mixing plant is indeed complete and reliable, the following maintenance measures are essential.
The first thing to pay attention to is the universal rotating part of the drive unit of the asphalt mixing plant. This part has always been a fault-prone part. In order to reduce the occurrence of faults, grease should be added on time, and the wear should be checked frequently, and repaired and replaced in time. Users should also prepare the universal shaft assembly to avoid affecting the working process of the entire asphalt mixer.
Secondly, the cleanliness of the hydraulic oil used in the asphalt mixing plant must be ensured. After all, the working environment of the equipment is relatively harsh, so it is necessary to prevent sewage and mud from entering the hydraulic system. The hydraulic oil should also be replaced regularly according to the requirements of the manual. Once water or mud is found mixed in the hydraulic oil during inspection, the hydraulic system should be stopped immediately to clean the hydraulic system and replace the hydraulic oil.
Since there is a hydraulic system, of course, a matching cooling device is also required, which is also an important focus in the drive system of the asphalt mixing plant. To ensure that its function can be fully exerted, on the one hand, the hydraulic oil radiator should be cleaned regularly to prevent the radiator from being blocked by cement; on the other hand, the radiator electric fan should be checked to see if it is running normally to prevent the hydraulic oil temperature from exceeding the standard.
In general, as long as the hydraulic oil of the asphalt mixing plant drive device is kept clean, there are generally few faults; but the service life varies from manufacturer to manufacturer, so pay attention to its alkalinity observation and replace it in real time.

1. Causes of overflow
The main causes of spillage are:
1) Mixing materials in cold silo. Cold material warehouses generally have 5 or 4 warehouses. Each warehouse is required to contain pellets of a certain specification. If cold materials of different specifications are mixed or mistakenly loaded during the loading process, it will cause certain occurrences in a certain period of time. The shortage of pellets of one specification and the overflow of pellets of another specification can easily destroy the supply balance between hot and cold silos.

With the strengthening of the trend of environmental protection and energy conservation, the environmental protection of asphalt mixing plants has gradually become the mainstream form of mixing plant development. What kind of equipment can be called an environmentally friendly asphalt mixing plant? What are the basic conditions that must be met?
First of all, as an environmentally friendly asphalt mixing plant, it must meet the requirement of using less energy consumption during use. That is to say, under the conditions of the same quantity and quality, less energy is consumed during the operation process, including various resources such as water and electricity.
Secondly, environmentally friendly asphalt mixing plants not only require less energy consumption, but also must achieve higher production efficiency, while also reducing carbon emissions in the entire production process, so as to meet the proposed low-carbon production requirements.

Asphalt mixing plants are highly professional equipment with complex systems. It is inevitable that some failures will occur during use. So, what are the common hardware failures of asphalt mixing plants? Do you know?
(I) Because its system is relatively complex, when different components have problems, the problems caused may be different. If during the operation, it is found that the material addition of each silo is inaccurate, this problem may be due to the failure of the sensor of the asphalt mixing plant. At this time, the machine should be stopped for inspection and replaced with a new sensor if necessary. It may also be caused by the jamming of the scale bar. At this time, foreign objects should be removed in time.

Certain failures cannot be avoided during the use of the asphalt mixing plant. For example, a malfunction of the cold material feeding device may cause the asphalt mixing plant to shut down. This may be due to a malfunction in the asphalt mixing plant or due to gravel or foreign matter being trapped under the cold material belt. If it is stuck, if it is a circuit failure, first check whether the motor control inverter of the asphalt mixing station is faulty and whether the line is connected or open.

In today’s road construction, the use of a large number of road construction machinery represents the entry into the era of highway mechanization. For users, the goal is to use road construction machinery reasonably and tap its potential as much as possible. However, road construction machinery requires various accessories to work together. Now let’s take the asphalt mixing plant as an example to see what commonly used accessories and equipment are available.
Asphalt mixing plant equipment is a relatively complex system, which includes many equipment, mainly nine parts, namely: bag dust removal, finished material temporary storage warehouse, grading machine, fast heating asphalt tank, asphalt barrel removal machine, asphalt recycled material crushing and screening system, coal block crusher, coal mill and dust removal equipment, etc.

As an important production equipment in construction, asphalt mixing plant has high production investment. Therefore, production is very important during use, but daily maintenance is also very important. In addition to regular maintenance, routine maintenance is also essential. The editor of Asphalt Mixing Plant shares some key points of daily maintenance and scheduled maintenance;

The development prospects of asphalt mixing plants are very good, and the product competition on the market is also very fierce. When the equipment is used, uneven wear of the supporting wheels and wheel rails often occurs, and sometimes there are some abnormal noises and edge gnawing. The main reason is that after the asphalt mixing station has been working for a period of time, the drying cylinder is exposed to high temperature and friction occurs between the supporting wheel and the wheel rail.
Under the action of drying materials in an asphalt mixing station, the equipment will vibrate violently, which will directly lead to improper adjustment of the gap between the wheel rail and the supporting wheel, or mutual interference between the two. The position is skewed, so the operator needs to add grease to the surface contact positions of the supporting wheel and the calibrating wheel rail after every day’s work.

Asphalt mixing stations have always been criticized for pollution due to the emission of harmful smoke and dust and high energy consumption. Asphalt mixing stations with high pollution, high energy consumption and unqualified environmental protection are obviously incompatible with modern urban development. Under the high pressure of environmental protection supervision, how can asphalt mixing stations pass environmental protection inspections smoothly? Can asphalt mixing stations be low-carbon, energy-saving, and environmentally friendly, and achieve environmental protection upgrades?
As a professional asphalt mixing equipment R&D and manufacturer, how to make asphalt mixing stations more environmentally friendly and energy-saving has always been the direction of Nanfang Road Machinery’s efforts. In response to the pollution problems faced by asphalt mixing stations, Nanfang Road Machinery has launched environmentally friendly asphalt mixing equipment with strict environmental protection standards.

As a special equipment, standardizing the operating procedures of important production tools of asphalt mixing stations, conducting daily maintenance, regular inspections, eliminating hidden dangers, etc. can effectively ensure the safety and stability of the equipment and prevent equipment from malfunctioning due to misoperation. causing equipment damage. Good maintenance operations can also greatly extend the service life of asphalt mixing plants. Therefore, before daily operation, the asphalt mixing plant must be properly maintained to make the asphalt mixing plant operate better and create wealth.

The drying and heating system of the asphalt mixing plant can be regarded as an important part of the whole, so in actual work, it treats the material in a countercurrent heating manner, thereby achieving full dehydration of the cold aggregate, and heating it to a certain temperature, thereby providing the necessary conditions for the normal and continuous operation of the asphalt mixing plant.
During the entire heating process of the asphalt mixing plant, the main purpose is to make the performance of the mixture more in line with the requirements of use, and to make the finished material have good paving performance. Under normal circumstances, the heating temperature of the aggregate is about 160℃-180℃.

The core of the asphalt mixing plant is its electronic control system. If it has problems, it will cause a lot of trouble to use. However, in actual use, the electronic control system in the asphalt mixing plant will inevitably encounter some problems and failures. How to solve it at this time?
If only the instrument display of the electronic control system of the asphalt mixing plant is inaccurate, it means that the weighing system may be affected by external forces; or the drift error of the sensor causes the weighing zero position or weighing interval to change; it may also be caused by sensor damage.
